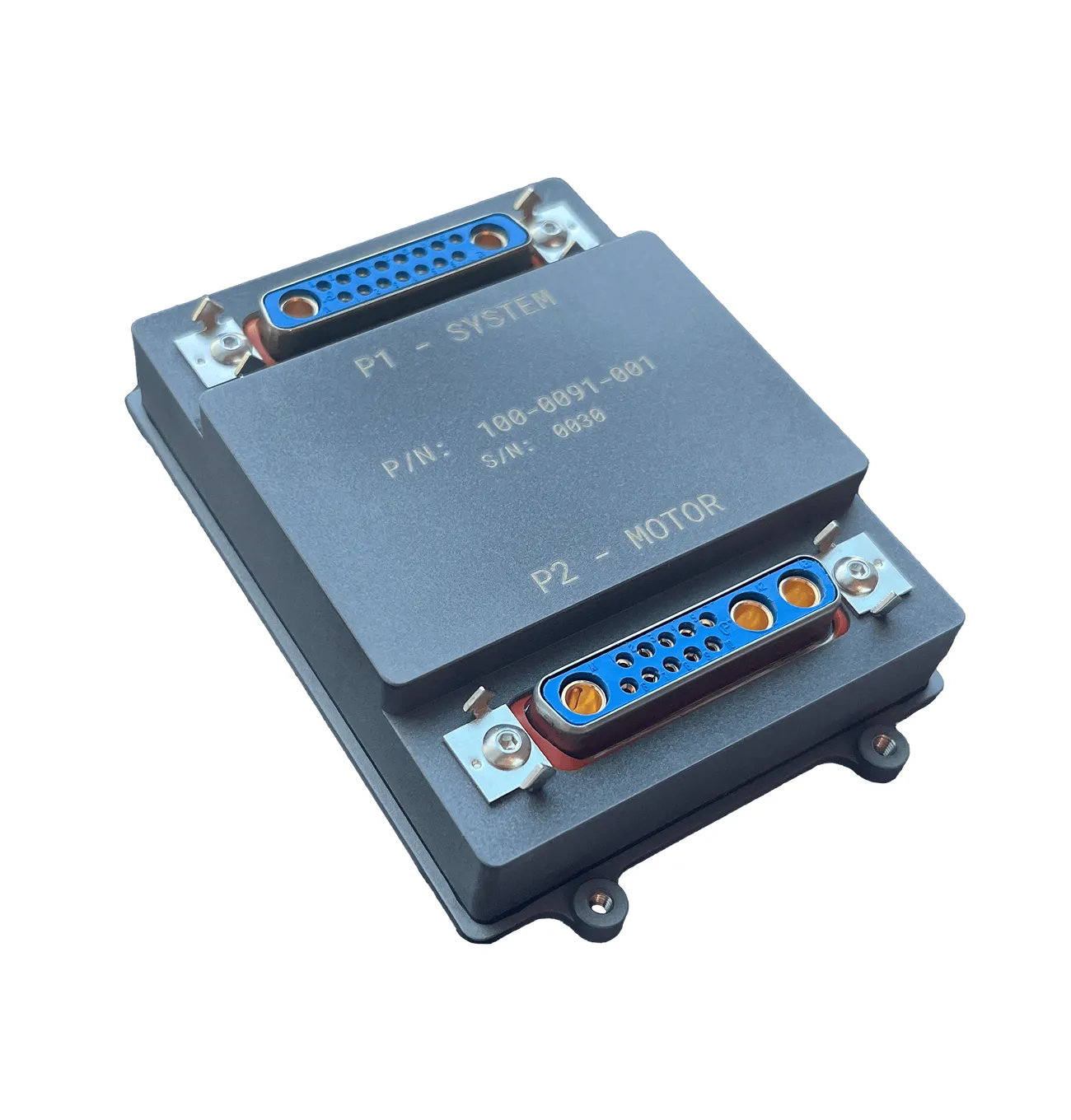

Taurus AEX
Extended-voltage motor and actuator controller that drives BLDC motors, linear actuators, and servos up to 24S.
| Input Voltage | 20V – 100.8V (24S max) |
| Peak Current | 63A (60s) |
| Continuous Current | 58A |
| Weight | 184g (with heatsink) |
| Dimensions | 101 × 68 × 31mm |
| Communications | CAN 2.0 · RS-485 · RS-232 (isolated) |
The Taurus AEX extends the Actuator Edition platform to higher voltages and currents, supporting 16S, 20S, and 24S battery configurations while maintaining the same isolated multi-protocol communication architecture. Its versatility beyond pure motor driving, including support for linear actuators and servos, makes it the standard choice for platforms requiring mixed actuation across a single, unified control architecture.
The Taurus AEX reduces thermal overhead by 20% in high-density motor controller installations compared to prior-generation designs, enabling tighter packaging in eVTOL booms, fuselages, and nacelles where thermal budget is as constrained as physical space.
- · Supports 16S, 20S, and 24S battery configurations
- · Controls BLDC motors, linear actuators, and servos
- · Full FOC/SVPWM for efficiency up to 2kW peak
- · ±63A peak / ±58A continuous operation
- · Isolated CAN 2.0, RS-485, and RS-232
- · Hall sensor and quadrature encoder interfaces
- · Full regenerative / generation support
- · Multiple mounting options: cooling fins, flat plate, or bare board
- · M3 mounting hardware, 95mm × 45mm pattern
High-voltage, high-power SiC motor controller for demanding propulsion applications up to 403V.
Medium-power actuator-class motor controller with isolated multi-protocol comms and full FOC/SVPWM.
6kW peak motor controller in a sealed IP67 enclosure, built for harsh environments.
Ready to integrate Taurus AEX?
Our team can answer technical questions, provide integration support, or quote a MOTS variant for your platform.
