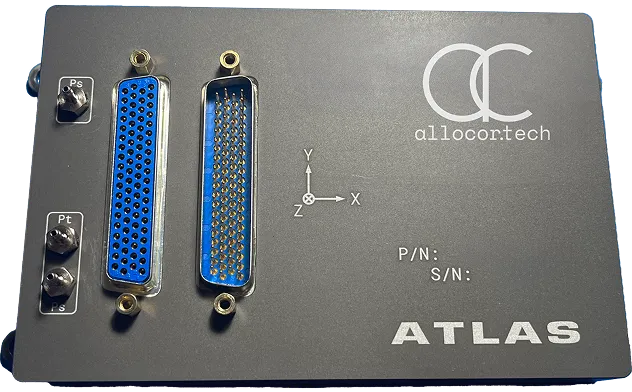

Atlas Flight Computer
PX4-compatible flight computer with integrated mission computer, air data, and Ethernet switching in one ruggedized package.
| Input Voltage | 9V – 36V |
| Power Consumption | < 3.5W typical |
| Mass | 386g |
| Dimensions | 3.82" × 6.5" × 1.36" |
| Ingress Protection | IP64 |
| Operating Temp | −40°C to +70°C |
The Atlas Flight Computer integrates everything a modern autonomous vehicle needs for flight control and mission management into a single IP64-rated enclosure, eliminating the integration complexity of pairing separate FMU, mission computer, and switch hardware.
The FMU core is built on the open-source Pixhawk FMUv6X standard and runs PX4, ensuring compatibility with the broad ecosystem of PX4 peripheral support while allowing teams to leverage Allocortech’s SDK for vehicle-specific customization. The co-located Toradex Verdin Linux mission computer handles higher-level tasks including mission planning, payload management, and operator communications, all over the integrated managed Ethernet switch.
Atlas ships with Comet FTS integration built in, providing a clear path to flight termination compliance without additional integration work.
- · FMU based on open-source Pixhawk FMUv6X standard, PX4 compatible
- · Runs Allocortech SDK for custom flight control and vehicle-specific executives
- · Toradex Verdin System on Module running Linux as mission computer
- · Mission computer handles planning, ground station comms, and payload management
- · 2× CAN 2.0, 4× RS-232, 2× RS-422 serial interfaces
- · Ethernet: dual 10/100 managed switch + 1× 1Gbps external port
- · 12–16× PWM outputs, 6× analog inputs
- · DO-160G Category R vibration; −5k to 40k ft altitude
- · Comet FTS integration for full flight termination capability
