Taurus AE
Medium-power actuator-class motor controller with isolated multi-protocol comms and full FOC/SVPWM.
| Input Voltage | 12V – 60V |
| Peak Current | 30A (60s) |
| Continuous Current | 20A |
| Weight | 37g |
| Dimensions | 2.8" × 2.25" × 0.6" |
| Communications | CAN 2.0 · RS-485 · RS-232 (isolated) |

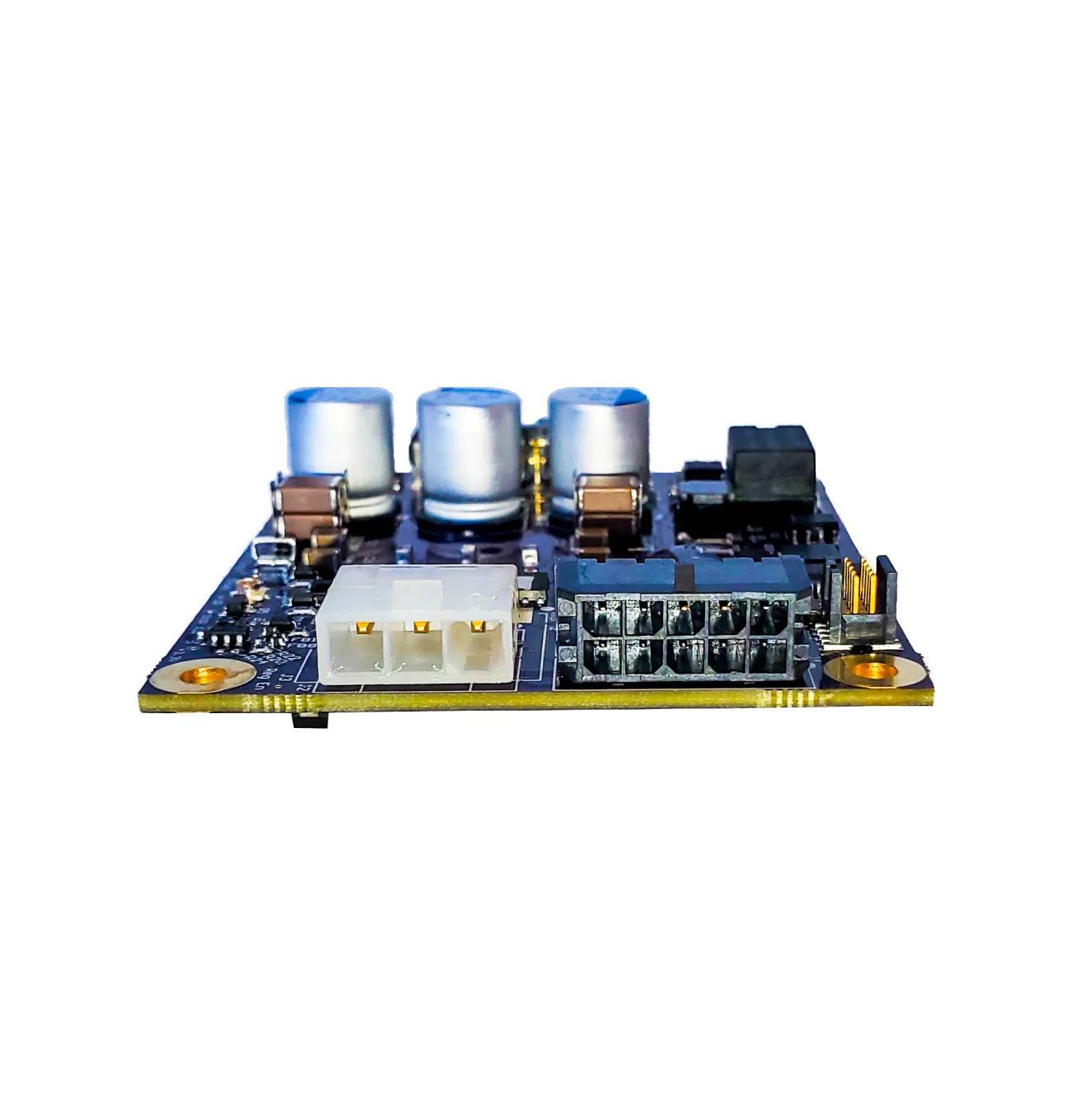

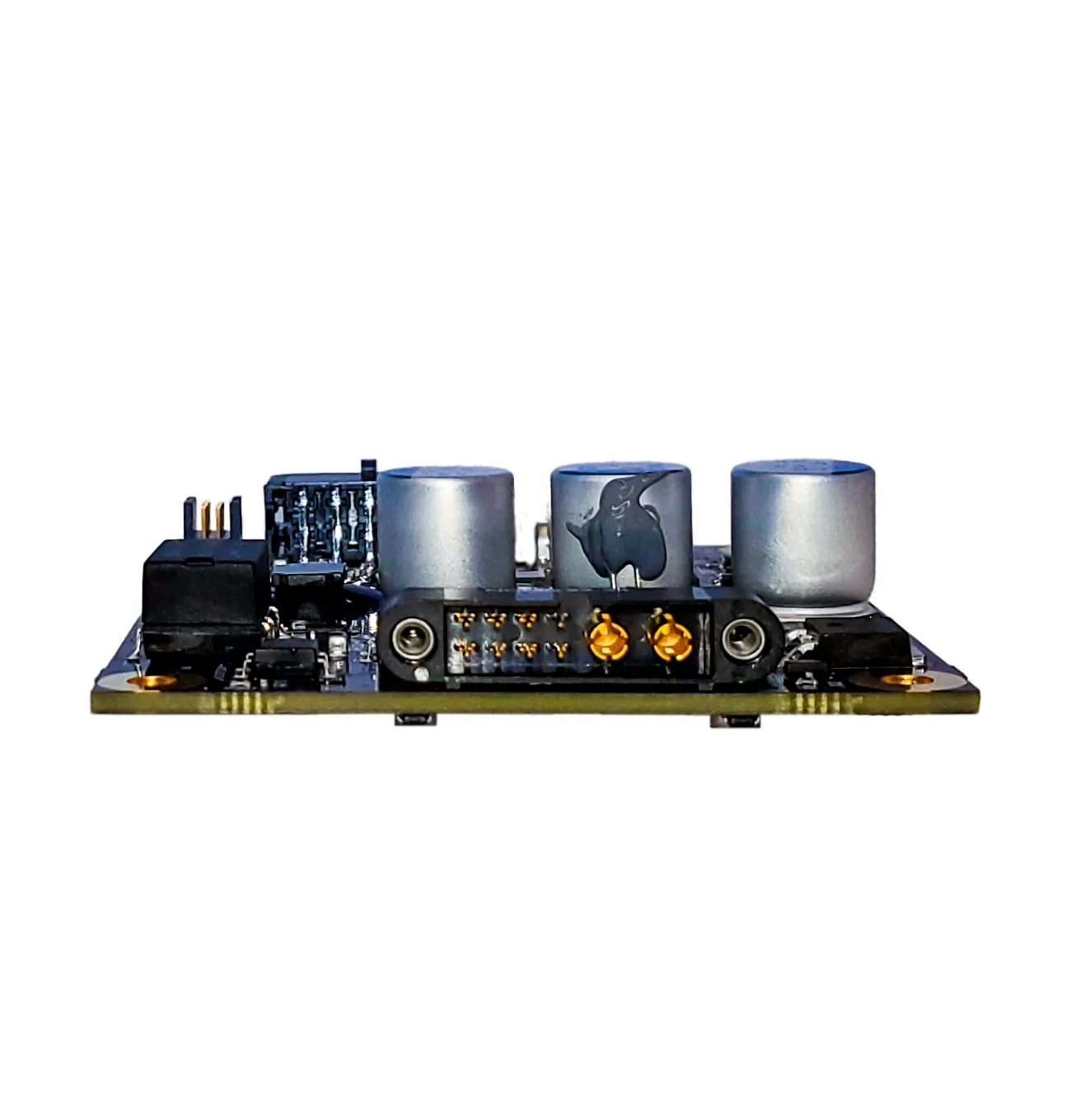

The Taurus AE (Actuator Edition) brings Allocortech’s full FOC/SVPWM motor control to the medium-power actuator class, delivering isolated multi-protocol communication and precise torque control in a 37-gram package.
Where conventional ESCs rely on simplistic 6-step commutation and single PWM inputs, the Taurus AE implements the same current-loop architecture as the flagship Taurus 400, scaled for 12S systems. The result: dramatically lower torque ripple, reduced acoustic noise, and real-time telemetry over CAN 2.0 or RS-485 without additional hardware.
The AE’s dual analog inputs accept temperature probes or external sensors, turning each controller node into an intelligent telemetry point across the vehicle harness.
- · Up to 12S (50.4V) operation
- · Full FOC/SVPWM for efficient operation up to 2kW peak
- · Isolated CAN 2.0, RS-422/485, and RS-232
- · Hall sensor and quadrature encoder interfaces
- · 2× analog inputs for temperature or external feedback
- · 40kHz current control loop
- · Sensorless or sensored (Hall / Quadrature) operation
- · Full regenerative braking and hybrid generation support
- · Ultra-compact at 37g, with all isolation circuitry on-board
High-voltage, high-power SiC motor controller for demanding propulsion applications up to 403V.
Extended-voltage motor and actuator controller that drives BLDC motors, linear actuators, and servos up to 24S.

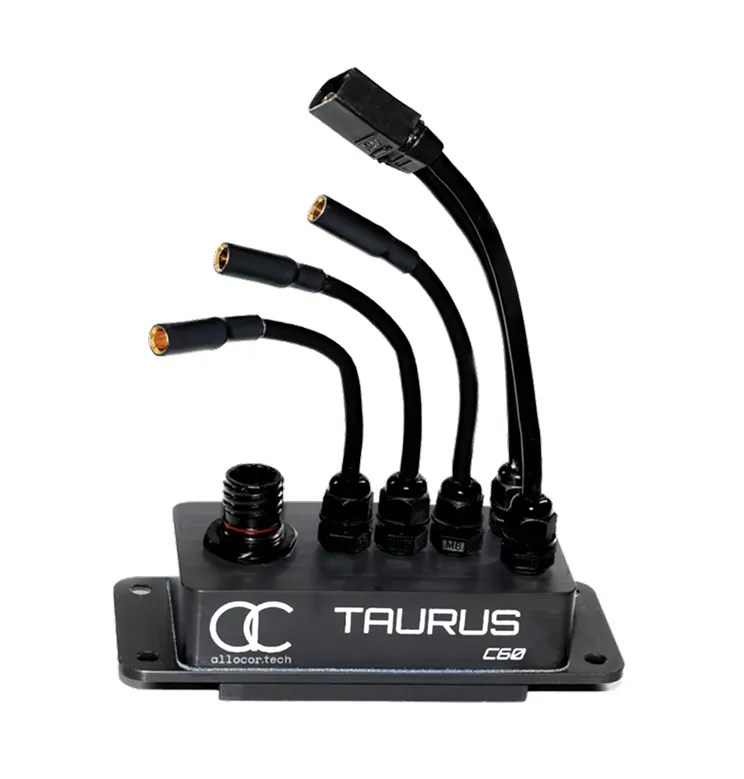

6kW peak motor controller in a sealed IP67 enclosure, built for harsh environments.
Ready to integrate Taurus AE?
Our team can answer technical questions, provide integration support, or quote a MOTS variant for your platform.
