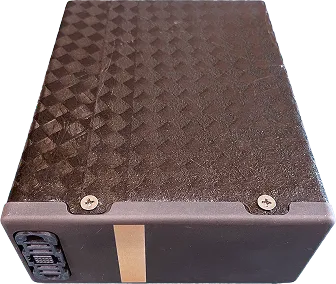

Lohner Smart Battery
High-availability standby power with real-time BMS, 50A continuous output, and SurLok Plus connectors.
| Capacity | 8,000 mAh (6S2P LiPo) |
| Nominal Voltage | 22.2V |
| Discharge Rating | 100A / 30s · 50A continuous |
| Weight | 2,200g |
| Dimensions | 8.5" × 4.7" × 4.1" |
| Communications | CAN-FD · RS-485 · RS-232 |
The Lohner Smart Battery pairs a high energy density 6S2P LiPo pack with a full-featured ARM Cortex-M7 monitoring and control system, delivering the kind of battery intelligence that mission-critical vehicle systems require rather than the minimal BMS found in commercial off-the-shelf packs.
Its key design innovation is the standby power architecture: when the main bus voltage drops below the battery voltage, Lohner automatically provides power without any software command or relay actuation. This enables direct vital bus tie, eliminating the power-path relay that adds weight, cost, and a potential single point of failure in conventional standby battery designs.
The allocore open-platform SDK provides full source access to the Lohner firmware, enabling custom state-of-charge algorithms, telemetry integration, and charge management without firmware licensing constraints. Deployed on the VICTOR Group 3 UAS platform and verified to 1,500+ charge cycles in DO-160G qualification.
- · STM32H7A3 ARM Cortex-M7 for real-time monitoring and state estimation
- · 50A continuous output until depletion; 100A for 30-second bursts
- · Rugged 5.7mm SurLok Plus connectors (4–6 AWG wire)
- · Short-circuit protection with automatic bus-voltage switchover
- · Direct vital bus tie capability with no separate relay required
- · 2× CAN-FD, 2× RS-485, 1× RS-232 via MIL-spec connector
- · External LED status: slow green blink = charged; red = < 40% capacity
- · Recharge by connecting power, no software commands required
- · Shelf life: 3 months minimum without maintenance charge
- · DO-160G qualified; 1,500+ cycle lifetime
